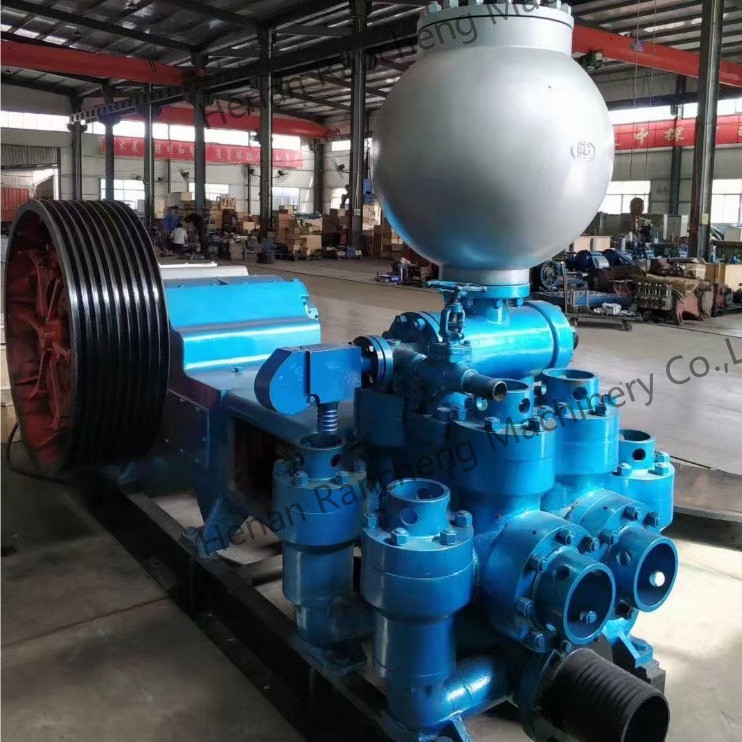

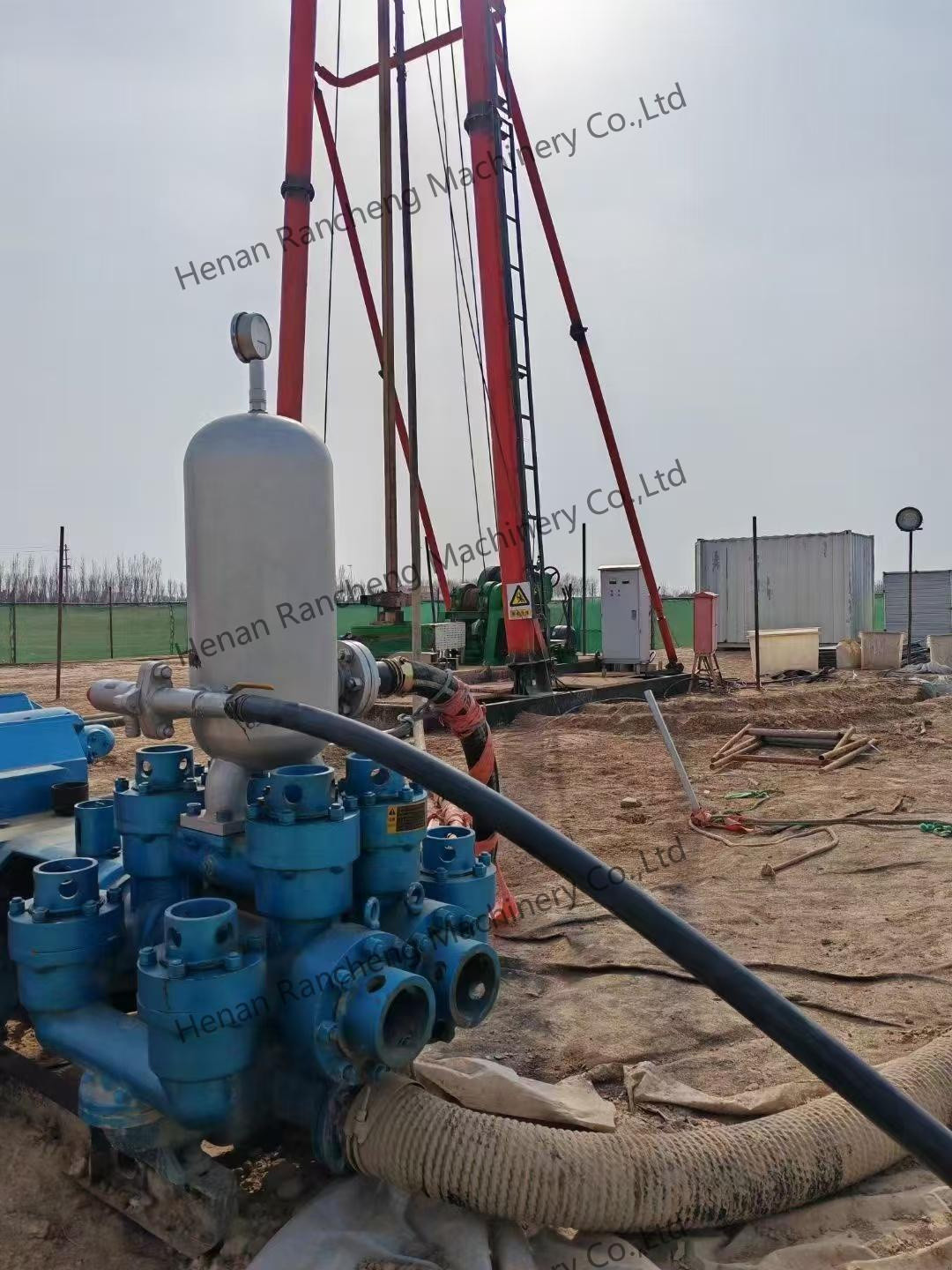

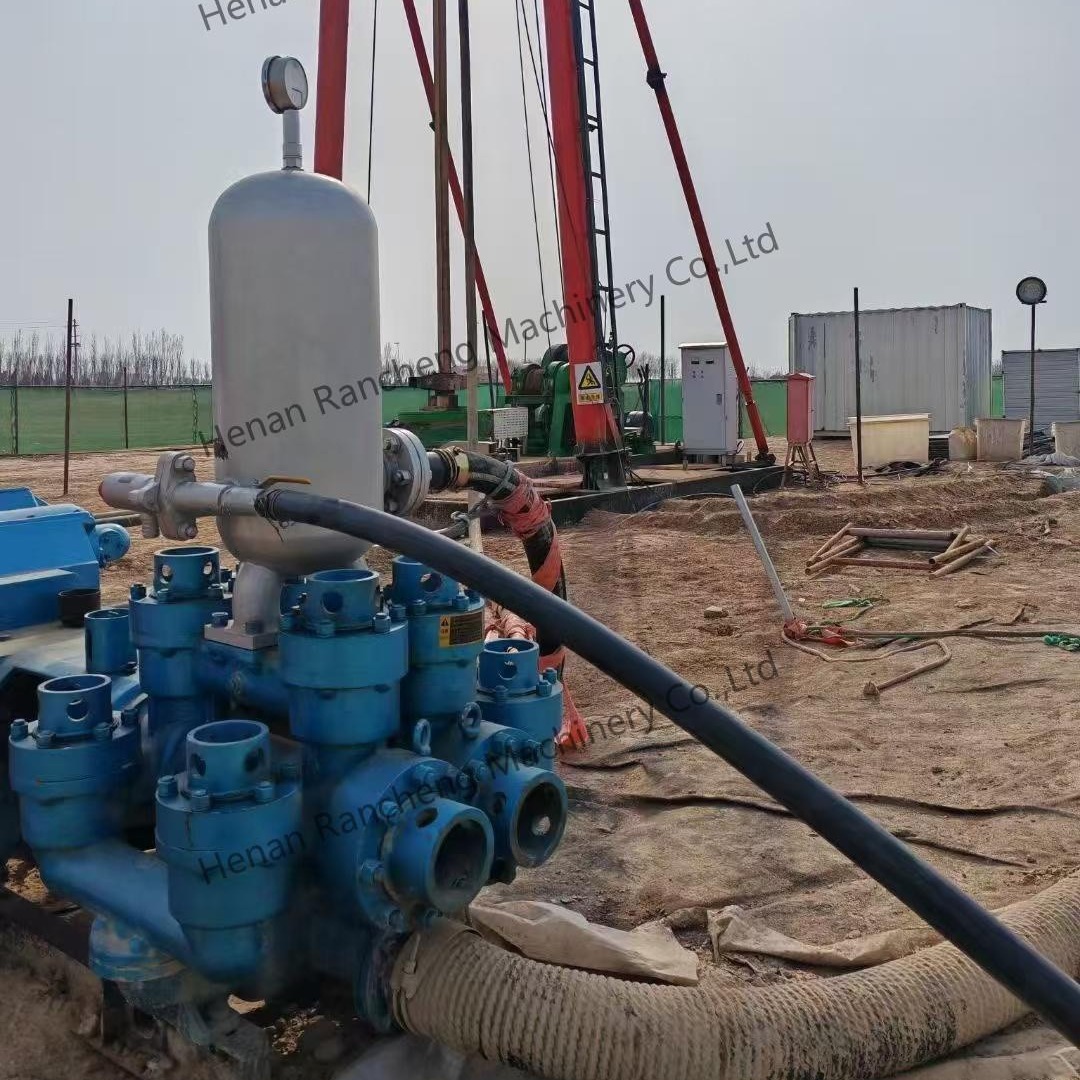

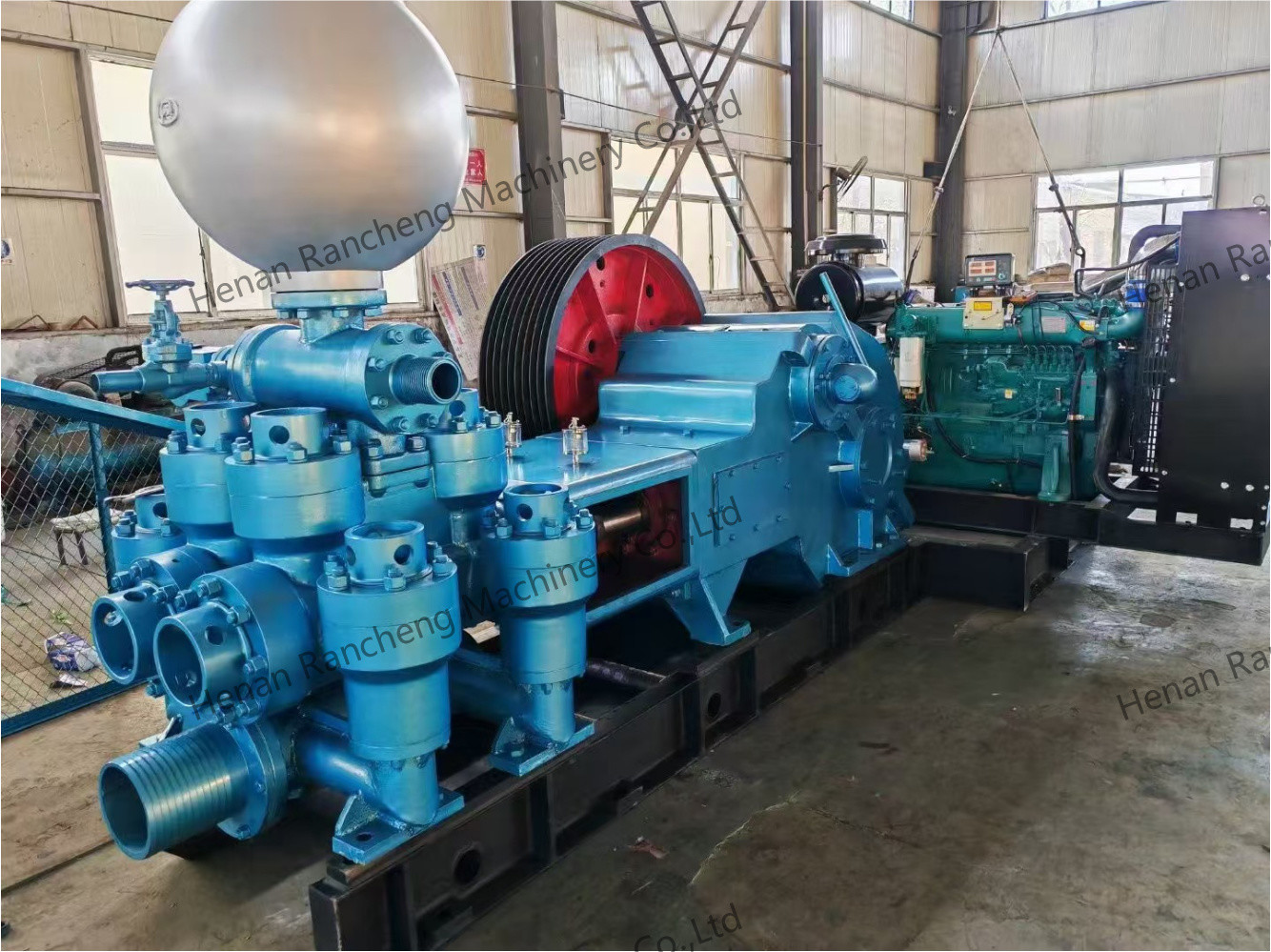

BW1200/7 Piston Mud Pump For 1000m Deep Water Well Drilling
Product Description
The BW1200/7 mud pump, a horizontal double-cylinder double-acting piston pump, is designed for deep - water drilling. It can be driven by electricity, a diesel engine, or a hydraulic motor, offering great versatility and flexibility. With a max flow of 1200L/min and a max pressure of 7MPa, it ensures stable and efficient mud transportation for thorough well washing and debris removal. The pump, built with high - strength materials, is durable. It can withstand high temperatures, extreme pressures, and wear from long - term use, making it ideal for 1500m - deep water well drilling, oil well core drilling, and well washing.
The BW1200/7 mud pump is compact and lightweight, making it easy to transport and install quickly. It is suitable for various complex construction sites. Its modular design simplifies maintenance, enabling easy inspection and part replacement, which reduces downtime and boosts overall productivity. Additionally, it has an ergonomic control panel. Operators can easily adjust the pump's flow and pressure, achieving precise control and stable output.
Technical Parameters
| Pattern | Horizontal double-cylinder reciprocating double-acting piston pump |
| Cylinder dia(mm) | 160 | 150 |
| Flow(L/min) | 1200 | 1000 |
| Rated Output Pressure (Mpa) | 7 | 6 |
| Stroke(mm) | 270 |
| Rated Pump Speed(min-1) | 70 |
| Power (KW) | 185 |
| Weight(kg) | 7200 (without engine) |
| Dimension(mm) | 3045*1440*2420 |
Advantages
-
The BW1200/7 mud pump is user-friendly, with a moderate displacement and few wearing parts, ensuring a long service life.
-
The displacement and pressure of the BW1200/7 mud pump can be adjusted by replacing cylinder sleeves and pistons of different diameters to suit various working conditions.
-
The connecting rod of the BW1200/7 mud pump is linked to the crankshaft bearing, and the rolling friction helps cut energy loss and extend the pump’s service life.
-
The BW1200/7 mud pump’s connecting rod is integrally cast, with strong load-bearing capacity and easy disassembly, maintenance, and replacement.
Application
The BW1200/7 mud pump is mainly used to transport flushing fluids during geological exploration, geothermal development, water source drilling, and shallow oil and gas layer drilling. The flushing fluid can be a medium such as mud and clean water, and the pump can also be used as a delivery pump for the above media.
