Product Description:

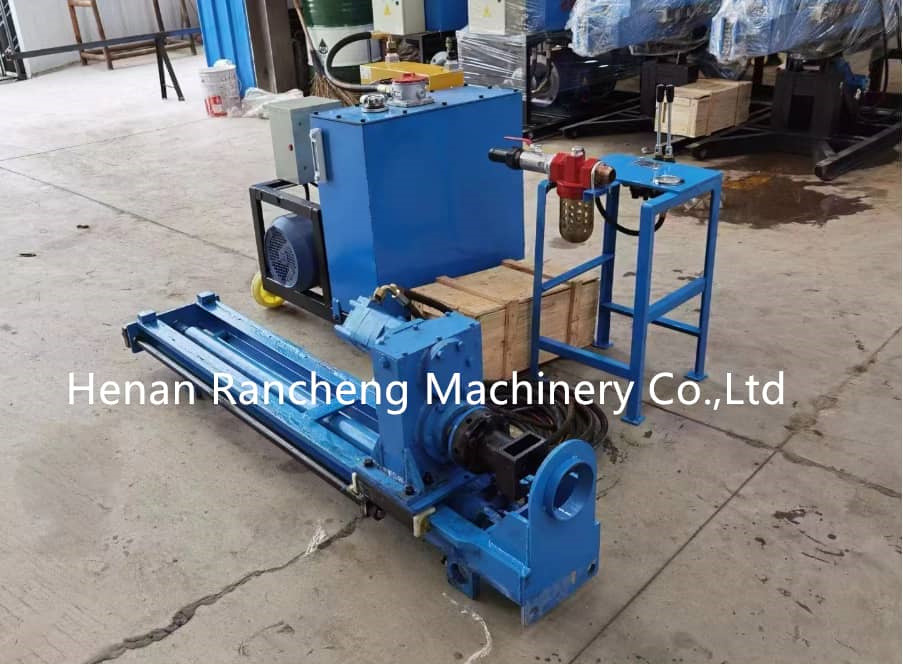

RCA-40E construction drilling rig is a full hydraulic operated top drive power head anchor drill machine.
Our anchoring system excels in a variety of applications, making it an essential tool for engineers and construction professionals. Whether you are working on urban deep foundation pit support, anti-floating anchors, or foundation grouting reinforcement holes, our product delivers exceptional performance. It is also ideal for engineering holes, high-pressure jet grouting piles, and pipe shed support holes, ensuring that your projects are completed safely and efficiently.
Crafted with advanced materials and cutting-edge technology, our anchoring system guarantees durability and reliability, even in the most challenging geological conditions. Its versatility allows for seamless integration into various construction projects, providing peace of mind and confidence in the structural integrity of your work.
With our anchoring system, you can effectively mitigate the risks associated with geological disasters, ensuring the safety of your projects and the people who rely on them. Elevate your construction capabilities and invest in a solution that stands the test of time. Choose our anchoring system for your next project and experience the difference in quality, performance, and reliability. Together, we can build a safer and more resilient future.
Features:
● Large drilling capacity, wide application range, high drilling speed, high drilling efficiency, and strong ability to eliminate accidents.
● An extension mechanism is provided on the output shaft of the upper drive power head to effectively protect the drilling tool. While adjusting the upper drive power head and the upper hole plate in opposite directions, the range of the hole inclination angle and the drilling height angle can be increased.
● A set of adjustable columns is installed at the front end of the drilling rig to adjust the height of the front end of the mast to facilitate hole alignment.
Technical Parameters:
| Product Name: | 40-60m Drilling Depth Rock Anchor Drilling Machine Split Type Hydraulic Anchor Drilling Rig With Electric Motor Power |
| Product Category: | Engineering Drilling Rig |
| Power Head Biggest Feeding Force: | 25 kN |

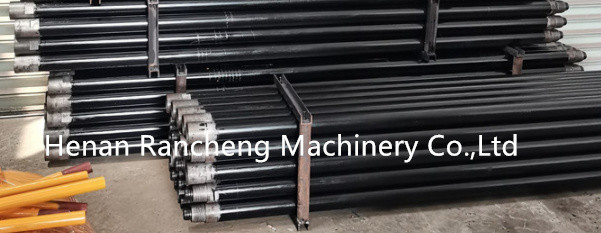

| Drill Specifications: | ¢ 60X1000mm, ¢ 76X1000mm |
| Power Head Output Speed: | 0 ~-80 Rpm |
| Hammer Size: | 90 or 110 |
| Power Head Stroke: | 1200mm |
| Rig Weight: | 320kg |
| Electric Motor Power: | 7.5KW |
| Rated Output Torque Of The Power Head: | 980 Nm |
