150m Multifunctional Engineering Drilling Rig RCJ150RC RC Drilling Machine
Product Description
The RCJ150RC drilling rig is mounted on a crawler chassis and operates with a fully hydraulic system. It is capable of drilling both vertical and inclined holes, using various drilling techniques, including:
- Auger drilling
- Down-The-Hole (DTH) hammer drilling
- Mud forward circulation drilling
- ODEX tools (casing pipe following) drilling with DTH hammer
- Medium reverse circulation drilling
- Wireline core drilling (after switching to a core drilling rotary head)
Product Specifications
| Model | RCJ150RC |
| Drill rig weight(crawler mounted) | kg | 9000 |
| Engine Power | kW | 125 |
| Length × Width × Height (normal) | mm | 6750x2200x2950 |
| Ambient Temperature Range | °C | -10～38 |
| Drill Ability |
| Nominal Drill Depth | m | 150 |
| End-hole Diameter | mm | 110-250 |
| Drill angle | ° | -10-90 |
| Horizontal hole height | m | 1.85-2.8 |
| Drill head output |
| Max Output Torque | N.m | 8000 |
| Output Rotation Speed(continuity) | rpm | 30 / 60, 54/108rpm |
| Output Rotation Speed(interval) | rpm | 62 / 124 105/210rpm |
| Feeding | mm | 3500 |
| Thrust Force | kN | 45 |
| Lifting Capacity | kN | 65 |
| Pipe-puller Device Output |
| Output Rotation Speed | rpm | 40 |
| Max Output Torque | N.m | 30000 |
| Hole-through Diameter | mm | 370 |
| Auxiliary Winch |
| Pull Force of the first Layer | kN | 11 |
| Rope Diameter | mm | 14 |
| Rope Capacity | m | 60 |
| Engine(Cummins) | 6BTA5.9-C125 |
| Power | kW | 125 |
| Rotary Speed (Max.) | rpm | 2200 |
| Track Chassis Base |
| Walk Speed | Km/h | 1.2 |
| Unit Pressure | MPa | ＜0.05 |
| Climb Ability | ° | ≯20 |
Product Features
● The hydraulic RC drilling rig has large output torque and wide speed range, which can meet various drilling methods. It has a wide range of applications.
● The hydraulic RC drilling rig’s feeding stroke is large, with no active drilling rod, which reduces the auxiliary time of reducing or adding rod, so that it can improve the drilling efficiency.
● The hydraulic drilling rig’s thrust force and lifting force are very large, which can meet the effective drill and have a super ability to handle accidents.
● This RC drilling rig is equipped with pipe puller device which can meet the requirements of twisting the drill rod, and reduces the labor strength.
● The RC drilling rig is crawler mounted, which makes the machine move easily.
● Important hydraulic parts on the drilling rig are selected from the world high-end technical products or well-known brand products, and the corresponding monitoring system is configured to ensure the good reliability of the system and the low failure rate.
● It can be used by various drilling methods, such as: Non-cycle liquid dry auger drill DTH hammer drill in rock layer by air Mud circulation drill in sand soil layer DTH hammer with tube drill in broken rock area by air,wireline core drilling

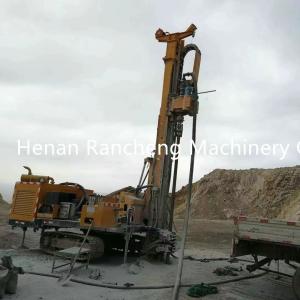

Product Image
