300m 500m 800m 1000m Borehole Camera Geophysical Survey Equipment Sony Camera
Product Description
360 - degree rotating, high - definition, waterproof underwater camera, specially designed for borehole inspection. The camera can capture high - quality images and videos at depths up to 1,000 meters underwater, providing users with clear and detailed views of underwater environments and structures. It has a 360 - degree rotation function that can capture the borehole and its surrounding environment in all directions. Horizontal and vertical rotation can scan various surfaces, and the operation is simple and convenient. Additionally, it is equipped with a high - definition sensor that captures clear images, providing users with unparalleled insights. The camera is IP68 certified, has excellent waterproof performance, and is suitable for operating in various humid conditions. It is designed to be durable and sturdy, shockproof and anti - vibration, compact, lightweight and easy to carry. The camera is also equipped with various accessories to meet various inspection needs and is a revolutionary innovation in the field of drilling inspection.
Product Data
| Parameter | Value |
| Camera Model | Sony 1/3 Sony Industrial Wide Dynamic High Speed Camera |
| Resolution (Horizontal Center) | 1200 Lines (1200TVL) |
| Signal Format | PAL |
| Minimum Illumination | 0.001LUX/F1.2 |
| White Balance Mode | Automatic |
| Backlight Compensation | High Brightness Backlight Compensation (HLC) |
| Operating Voltage | DC12V±5% |
Product Advantages

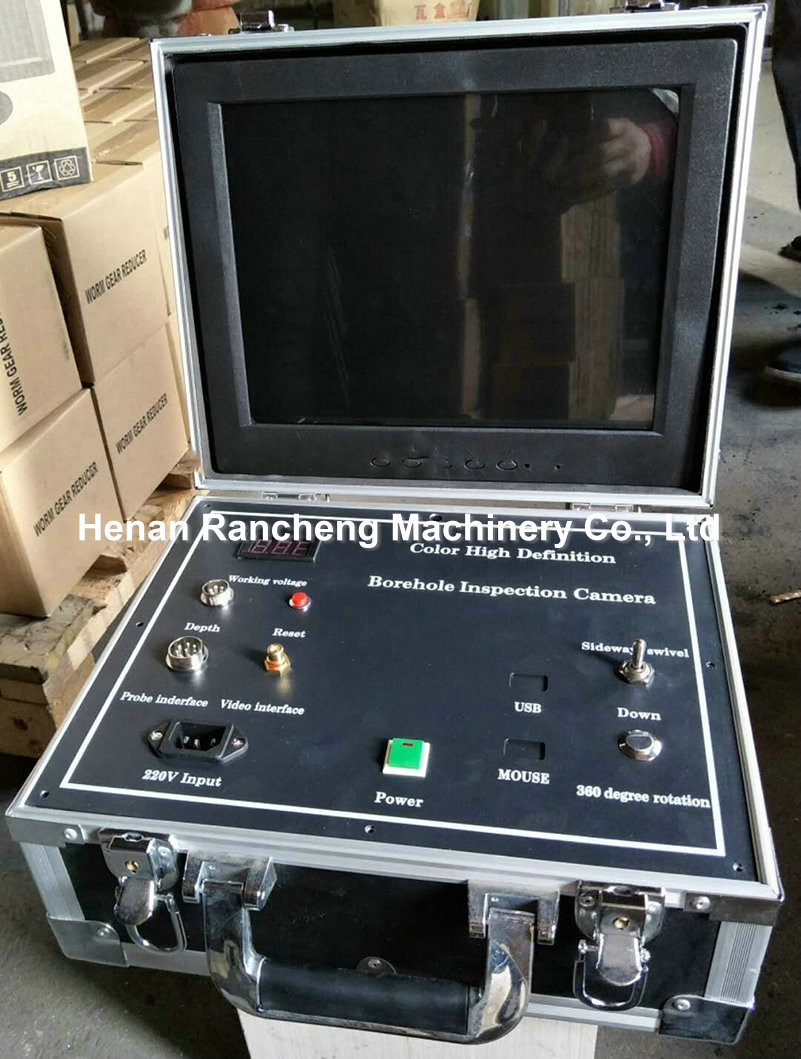

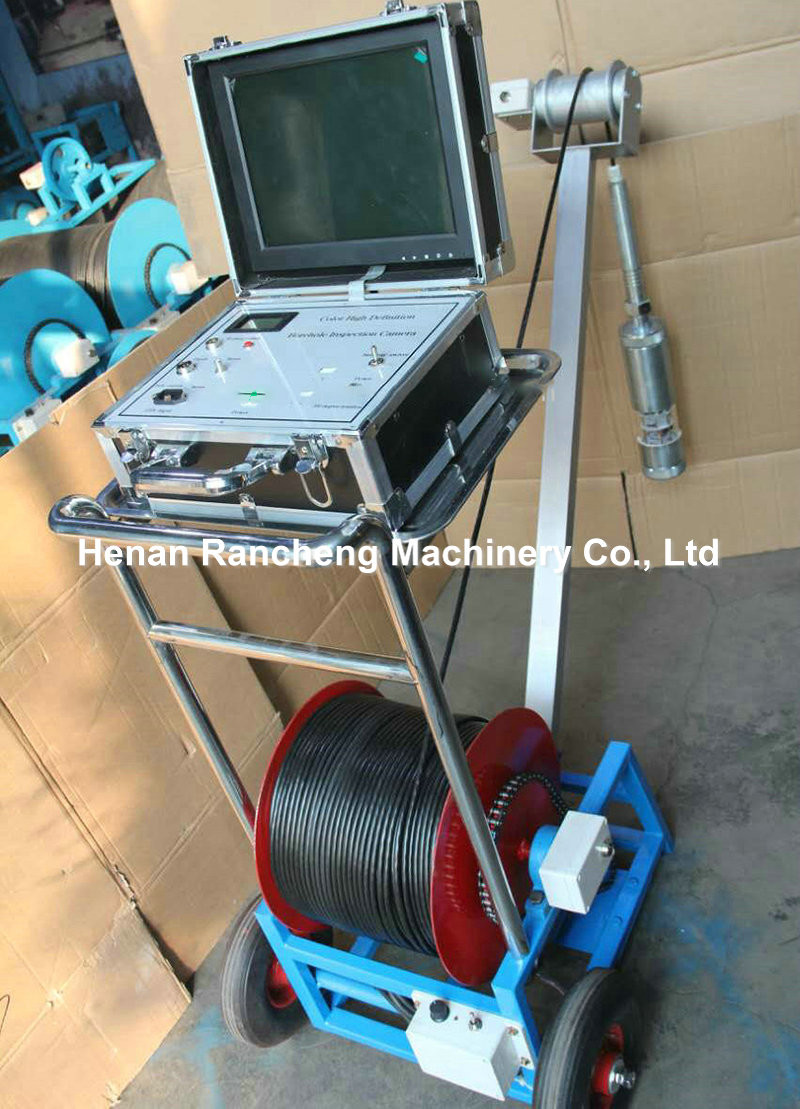

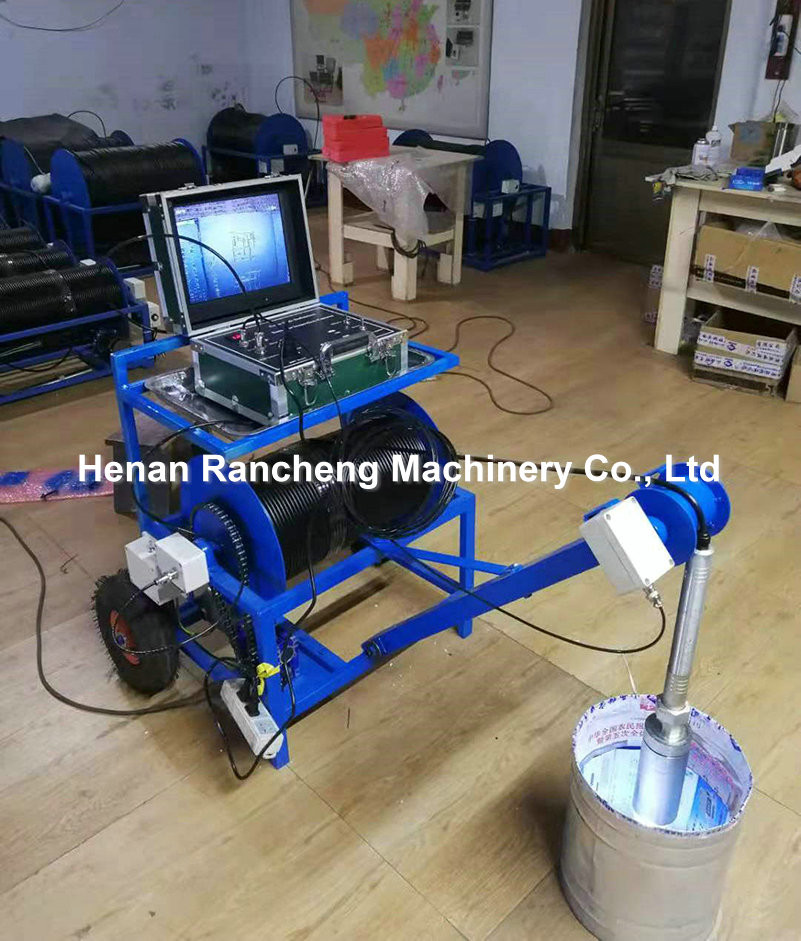

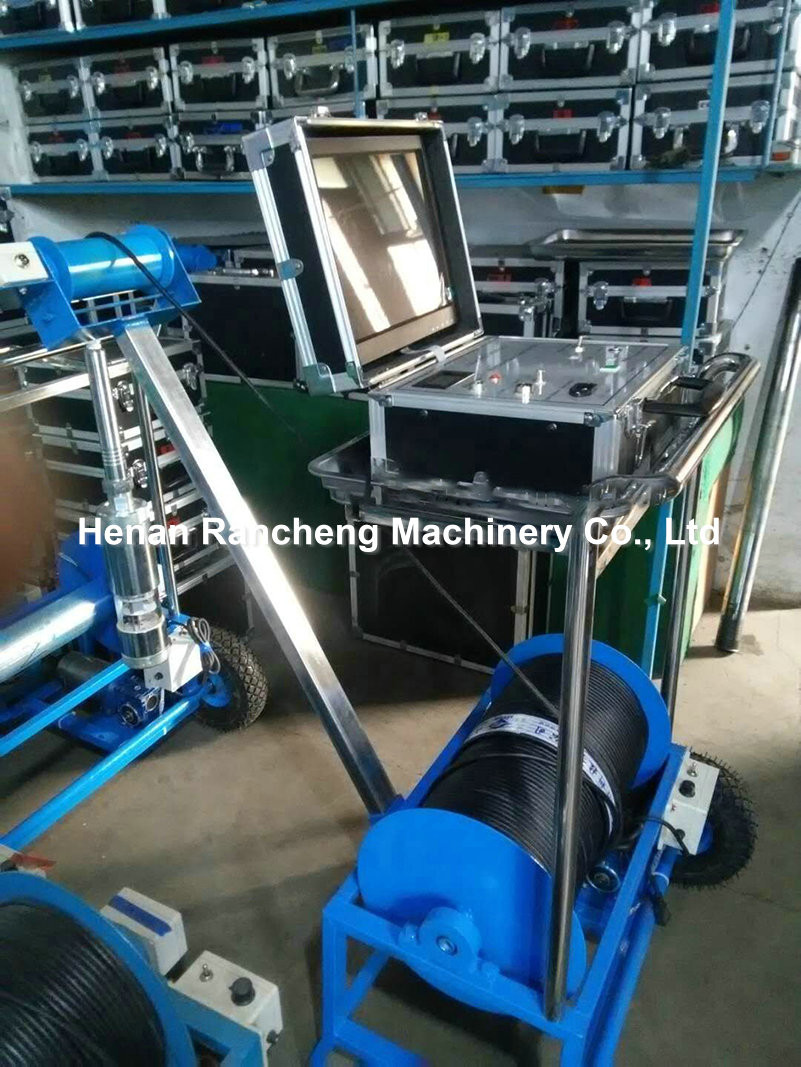

This drilling camera main control box uses 12V DC and 220V AC as the working power supply, and the power consumption of the whole machine is only 20W. Its lightweight design makes the electric winch equipped with automatic braking device, compact in structure, small in size and strong in durability. The probe is made of stainless steel, has an exquisite design, has excellent waterproof performance, and can withstand high pressure and high temperature environments. The system uses high - quality components and solidification program modules, which reduces the use of separate components and improves the stability and reliability of the system. The 360 - degree rotating probe is equipped with 18 - 24 high - quality, high - power LED lamp beads at the rear, which can be intelligently dimmed according to the surrounding environment, and has the characteristics of cold light source and low light quality. The probe is designed to allow vertical downward observation and 360 - degree circular rotation, making it easy to observe the details of a certain situation at any time. After on - site pressure testing, the probe has a pressure resistance of up to 25MPa and can dive to a water depth of 3000m without water ingress or water seepage. The probe adopts a high - temperature design and uses high - quality tempered glass, and the lens is not easily broken. It has a wide range of applicable distances, including 100 meters, 200 meters, 300 meters, 500 meters, 600 meters, 800 meters, 1000 meters, 1200 meters, 1500 meters, and 2000 meters.
Product Image
| Parameter | Value |
| Camera Model | Sony 1/3 Sony Industrial Wide Dynamic High Speed Camera |
| Resolution (Horizontal Center) | 1200 Lines (1200TVL) |
| Signal Format | PAL |
| Minimum Illumination | 0.001LUX/F1.2 |
| White Balance Mode | Automatic |
| Backlight Compensation | High Brightness Backlight Compensation (HLC) |
| Operating Voltage | DC12V±5% |
Product Tags:
|
|
300m 500m 800m 1000m Geophysical Survey Equipment Waterproof Borehole Camera Images
|
